YOUSIGNCHECK

Overview

The YOUSIGNCHECK workflow application lets you verify the status of an agreement and download its associated file, which is a concatenation of attached files.

How it works

• You can verify the status of an agreement and download the file from Yousign based on your status criteria.

• Application logs are available. These can be specified by setting the value of the YousignCheckLogLevel parameter in the web.config file to 0 to deactivate logs, 1 for error logs, 2 for information logs, or 3 for debug logs; the default value is 0.

Configuring the Yousign API

For instructions on how to configure the the Yousign API, see the Configuring the Yousign API section in the YOUSIGNSEND Workflow Application chapter.

Required parameter

Parameter	Type	Direction	Description
YOUSIGN_SIGNATURE_ID	TEXT	IN	ID of the Yousign signature to verify

Optional parameters

Yousign configuration

Parameters	Type	Direction	Description
YOUSIGN_API_KEY	TEXT	IN	Yousign API key By default, this value comes from the YousignApiKey parameter in the web.config file.
YOUSIGN_HOST_SERVER	TEXT	IN	Yousign host server (e.g.: https://api.yousign.app/v3) By default, this value comes from the YousignHostServer parameter in the web.config file.

General

Parameter	Type	Direction	Description
VALID_STATUS_LIST	TEXT	IN	Valid status to download the document Possible values: draft ongoing done deleted expired canceled approval rejected declined Default: done,canceled,expired,deleted,rejected
YOUSIGN_DOCUMENT	FILE	OUT	Yousign document
YOUSIGN_STATUS	TEXT	OUT	Agreement status

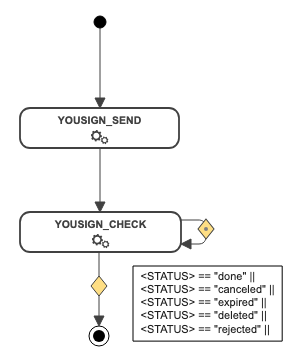

Example with YOUSIGNSEND

In the following example, the YOUSIGNSEND action is directly followed by the YOUSIGNCHECK action. This action will loop back onto itself until the status changes to done, canceled, expired, deleted, or rejected.

If the status returned meets the condition, the document will be downloaded from Yousign.

With the system loop action function, the YOUSIGNCHECK action will be executed every x seconds until the OUT condition is met.

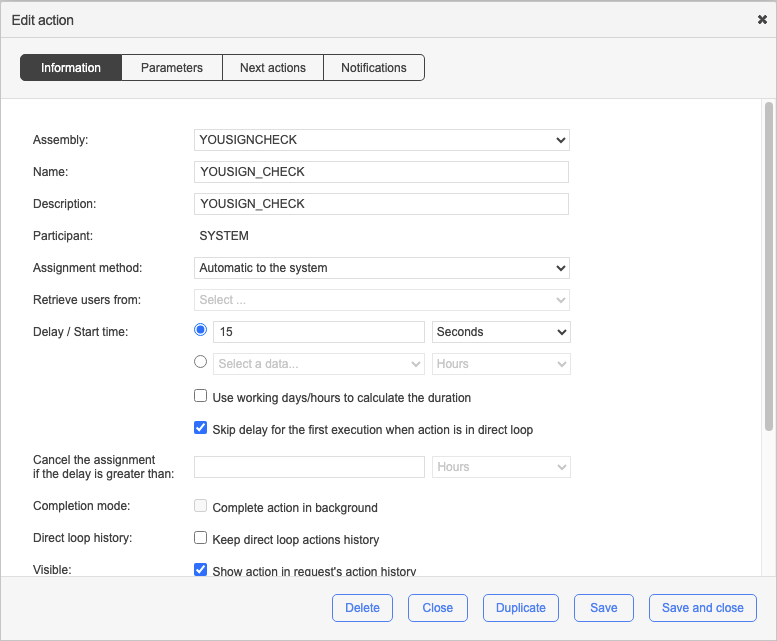

Configuring a YOUSIGNCHECK action
