> For the complete documentation index, see [llms.txt](https://docs.advantys.com/workflowgen-administration-module-reference-guide/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://docs.advantys.com/workflowgen-administration-module-reference-guide/workflow-applications/yousign/yousignsend.md). # YOUSIGNSEND ## Overview The **YOUSIGNSEND** workflow application lets you send one or more documents to Yousign for electronic signature. ## How it works * The YOUSIGNSEND application will create a unique envelope and send it to one or multiple signers.
* You can specify one or multiple files per YOUSIGNSEND action. To do this, use the `FILEx` parameter, where `x` corresponds to the file number (e.g `FILE1`). At least one file is required.
* You can specify one or multiple signers. To do this, use the combination of `SIGNER_FIRSTNAME_LIST`, `SIGNER_LASTNAME_LIST`, and `SIGNER_EMAIL_LIST`. You can also use `SIGNER_FIRSTNAMEx` , `SIGNER_LASTNAMEx`, and `SIGNER_EMAILx`, where `x` corresponds to the signer number.

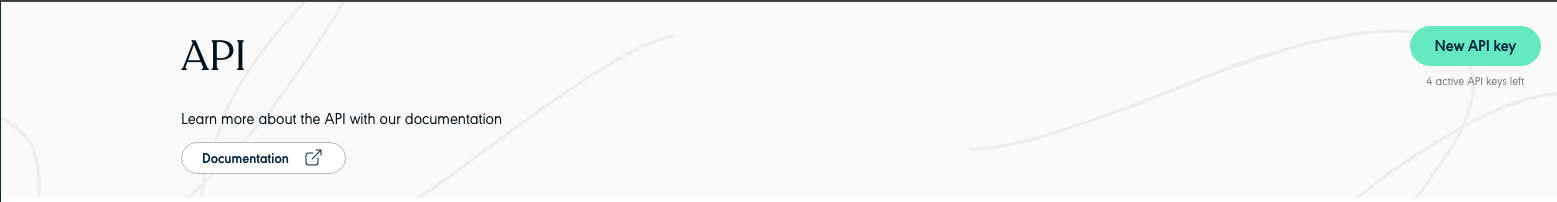

* Application logs are available. These can be specified by setting the value of the `YousignSendLogLevel` parameter in the `web.config` file to `0` to deactivate logs, `1` for error logs, `2` for information logs, or `3` for debug logs; the default value is `0`. ## Configuring the Yousign API ### Create a Yousign API application 1. In the Yousign administration interface, click the **Integrations** tab, then select the **API** menu.\ ![](https://content.gitbook.com/content/imiOCeaawutpXkzp4fhb/blobs/9uPznFRddjCoGVR6QAkj/image.png)
2. Click the **New API key** button.

3. Enter a description in the **Description** field. Select an environment (depending on your usage), then select **Full-Access** permissions.\ ![](https://content.gitbook.com/content/imiOCeaawutpXkzp4fhb/blobs/HpSOBpN6PLLLj2h3V1i1/image.png)
## Required parameters You can use either of the following configurations: with a signers list or with signer numbers. ### With a list of signers

Parameter	Type	Direction	Description
Parameter	Type	Direction	Description
`SIGNER_FIRSTNAME_LIST`	TEXT	IN	First names of signers, separated by the value defined in the `DATA_SEPARATOR` parameter
`SIGNER_FIRSTNAME_LIST`	TEXT	IN	Last names of signers, separated by the value defined in the `DATA_SEPARATOR` parameter
`SIGNER_EMAIL_LIST`	TEXT	IN	Emails of signers, separated by the value defined in the `DATA_SEPARATOR` parameter
`FILEx`	FILE	IN	File(s) to send, where `x` corresponds to the file number; you can add one or multiple files

### With signer numbers

Parameter	Type	Direction	Description
Parameter	Type	Direction	Description
`SIGNER_FIRSTNAMEx`	TEXT	IN	First name(s) of signer(s), where `x` corresponds to the signer number; you can add one or multiple signers
`SIGNER_LASTNAMEx`	TEXT	IN	Last name(s) of signer(s), where `x` corresponds to the signer number; you can add one or multiple signers
`SIGNER_EMAILx`	TEXT	IN	Email(s) of signer(s), where `x` corresponds to the signer number; you can add one or multiple signers
`FILEx`	FILE	IN	File(s) to send, where `x` corresponds to the file number; you can add one or multiple files

## Optional parameters ### Yousign configuration

Parameter Type Direction Description

Parameter Type Direction Description

YOUSIGN_API_KEY TEXT IN Yousign API key

By default, this value comes from the YousignApiKey parameter in the web.config file.

YOUSIGN_HOST_SERVER

TEXT

Yousign host server (e.g. https://api.yousign.app/v3)

By default, this value comes from the YousignHostServer parameter in the web.config file.

### General

Parameter	Type	Direction	Description
Parameter	Type	Direction	Description
`DATA_SEPARATOR`	TEXT	IN	Separator used to separate the content of `SIGNER_FIRSTNAME_LIST`, `SIGNER_LASTNAME_LIST`, `SIGNER_EMAIL_LIST` , `SIGNER_PAGE_LIST`, `SIGNER_X_POSITION_LIST`, `SIGNER_Y_POSTION_LIST` , `SIGNER_PHONE_LIST` , `SIGNER_LOCAL_LIST`, and `SIGNER_AUTH_MODE_LIST` Default : `,` (comma)
`SIGNER_PAGE_LIST`	TEXT	IN	Page to be signed by the signer(s), separated by the value defined in the `DATA_SEPARATOR` parameter
`SIGNER_PAGEX`	TEXT	IN	Page to be signed by the signer, where `x` corresponds to the signer number; you can add one or more signers
`SIGNER_X_POSITION_LIST`	TEXT	IN	X position of the signature area for the signer, separated by the value defined in the `DATA_SEPARATOR` parameter The value must be a positive numeric integer.
`SIGNER_X_POSITIONX`	TEXT	IN	X position of the signature area for the signer, where `x` corresponds to the signer number The value must be a positive numeric integer.
`SIGNER_Y_POSITION_LIST`	TEXT	IN	Y position of the signature area for the signer, separated by the value defined in the `DATA_SEPARATOR` parameter The value must be a positive numeric integer.
`SIGNER_Y_POSITIONX`	TEXT	IN	Y position of the signature area for the signer, where `x` corresponds to the signer number The value must be a positive numeric integer.
`SIGNATURE_NAME`	TEXT	IN	Name of the signature request
`SIGNER_PHONE_LIST`	TEXT	IN	Phone number of the signer(s), separated by the value defined in the `DATA_SEPARATOR` parameter
`SIGNER_PHONEX`	TEXT	IN	Signer's phone number, where `x` is the signer number.
`SIGNER_LOCALE_LIST`	TEXT	IN	Location of the signer(s), separated by the value defined in the `DATA_SEPARATOR` parameter
`SIGNER_LOCALEX`	TEXT	IN	Location of the signer, where `x` is the signer number
`SIGNER_AUTH_MODE_LIST`	TEXT	IN	Authentication mode of the signer(s), separated by the value defined in the `DATA_SEPARATOR` parameter
`SIGNER_AUTH_MODEX`	TEXT	IN	Signer authentication mode, where `x` is the signer number Default: `no_otp`
`FILE_NATUREX`	TEXT	IN	Nature of the document of the file to send, where `x` corresponds to the signer number Default: `signable_document`
`SIGNATURE_WIDTH`	TEXT	IN	Signature field width in pixels Default: `25`
`SIGNATURE_HEIGHT`	TEXT	IN	Signature field height in pixels Default: `37`

### Return parameter

Parameter	Type	Direction	Description
Parameter	Type	Direction	Description
`YOUSIGN_SIGNATURE_ID`	TEXT	OUT	Contains the Yousign signature ID; you can use this ID in the YOUSIGNCHECK workflow application

## Examples ### With a list of signers

Parameter	Type	Direction	Value
Parameter	Type	Direction	Value
`SIGNER_FIRSTNAME_LIST`	TEXT	IN	`John,Bernard`
`SIGNER_FIRSTNAME_LIST`	TEXT	IN	`Bridges,Martin`
`SIGNER_EMAIL_LIST`	TEXT	IN	`john.bridges@mycompany.com,bernard.martin@mycompany.com`
`SIGNATURE_NAME`	TEXT	IN	`Signature on a contract`
`SIGNER_PAGE_LIST`	TEXT	IN	`1,2`
`SIGNER_X_POSITION_LIST`	TEXT	IN	`100,100`
`SIGNER_Y_POSITION_LIST`	TEXT	IN	`100,100`
`FILE1`	FILE	IN	`contract.pdf`
`YOUSIGN_SIGNATURE_ID`	TEXT	OUT	`xxxxx-xxxxx-xxxxx-xxxxx`

### With signer numbers

Parameter	Type	Direction	Value
Parameter	Type	Direction	Value
`SIGNER_FIRSTNAME1`	TEXT	IN	`John`
`SIGNER_LASTNAME1`	TEXT	IN	`Bridges`
`SIGNER_FIRSTNAME2`	TEXT	IN	`Bernard`
`SIGNER_LASTNAME2`	TEXT	IN	`Martin`
`SIGNER_EMAIL1`	TEXT	IN	`john.bridges@mycompany.com`
`SIGNER_EMAIL2`	TEXT	IN	`bernard.martin@mycompany.com`
`SIGNATURE_NAME`	TEXT	IN	`Signature on a contract`
`SIGNER_PAGE1`	TEXT	IN	`1`
`SIGNER_PAGE2`	TEXT	IN	`2`
`SIGNER_X_POSITION1`	TEXT	IN	`100`
`SIGNER_X_POSITION2`	TEXT	IN	`100`
`SIGNER_Y_POSITION1`	TEXT	IN	`100`
`SIGNER_Y_POSITION2`	TEXT	IN	`100`
`FILE1`	FILE	IN	`contract.pdf`
`YOUSIGN_SIGNATURE_ID`	TEXT	OUT	`xxxxx-xxxxx-xxxxx-xxxxx`
