Applications
Applications screen
Menu banner
Buttons | Remarks |
Refresh | Refreshes the displayed application list |
New application | Opens a blank New application form |
Filters
Filter on * | Remarks |
Name | Filters by application name |
Description | Filters by application description |
* A filter can be applied to a part of a field.
External filters | Remarks |
Active | Displays active applications only |

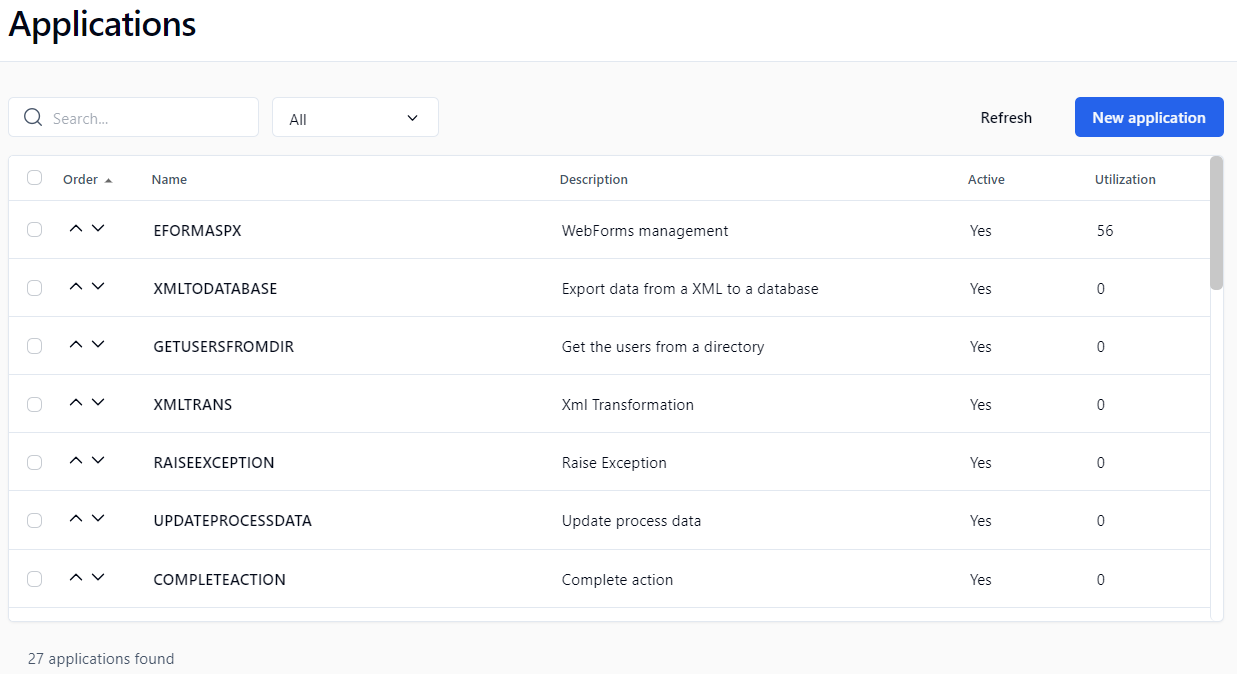

Applications list
Columns | Remarks |
Order | Use the arrows to change the order in which the applications are listed when adding or editing a workflow action |
Name | Application name (click to display the application form in edit mode) |
Description | Application description |
Active | Application active status |
Utilization | Number of actions in which the application is used |
Application form
General tab
These fields are displayed as applicable to the selected application type.
Fields | Remarks |
Name | Unique identifier for the application; must respect nomenclature and be limited to 30 characters (required field) |
Description | Application description limited to 255 characters (required field) |
Type | Application type:
|
URL | The relative or the absolute URL of the application; both will work (required field) |
WSDL | The WSDL URL to define a WSDL-based web service (if applicable); see WSDL web services for details on WSDL-based web services |
Username * | Username to be used if an authentication is required to access the application’s URL |
Password * | Password to be used if an authentication is required to access the application’s URL |
Content type | Type of data encoding to be used when the application returns to WorkflowGen:
|
Context format | Defines the format type of the context parameters exchanged between the application and WorkflowGen:
|
Schema definition | If checked, the schema will be embedded inline in the XML (for XML context formats only) |
Parameters | Application parameters (a link displays the parameters form in edit mode) |
Default application | If checked, the application is selected by default |
Active | If checked, the application is active |
Impersonate username | A WorkflowGen username to impersonate by the application (for the Incoming Webhook and Non Interactive Client application types) |
Client ID | A client ID from the |
* Only needed by the web procedures and the web services.

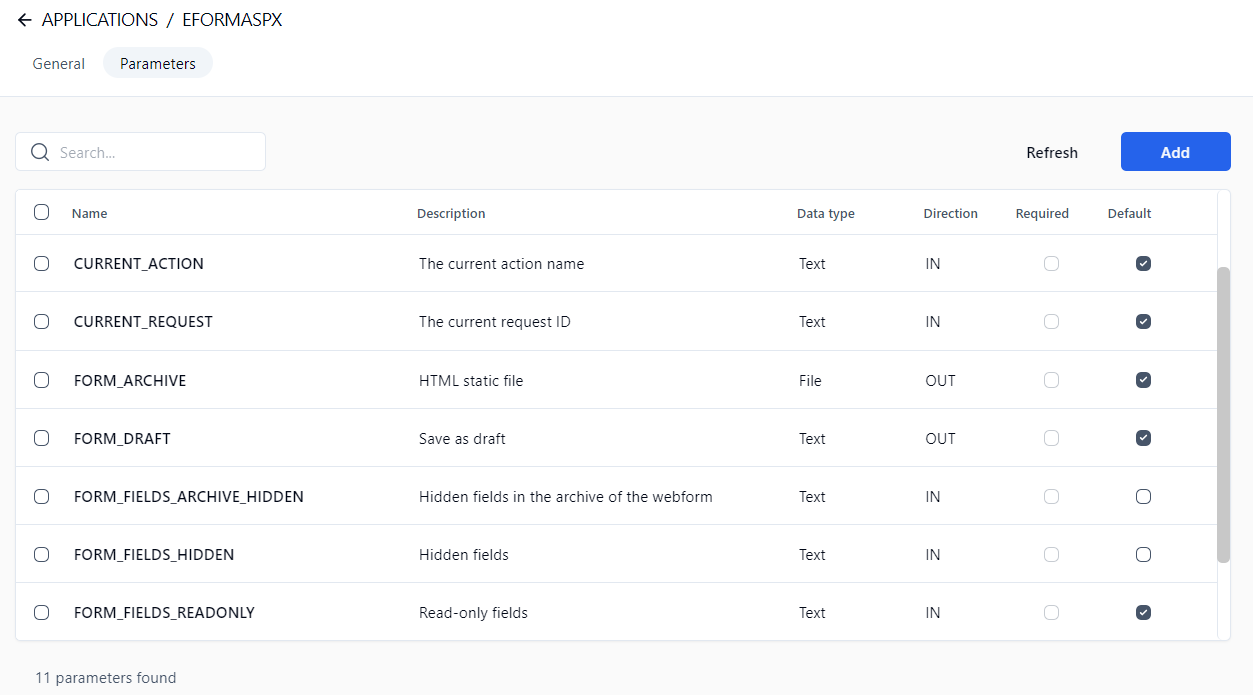

Parameters tab
Columns | Remarks |
Name | Application parameter name |
Description | Application parameter description |
Data type | Application parameter data type |
Direction | Application parameter direction |
Required | Required parameter |
Default | Optional parameter; displays the parameter in the parameter list of the actions based on the current application by default |
Adding an application parameter
Click the Add button to open the Add an application parameter panel.
Fields | Remarks |
Name | Application parameter name (required field; see the list of XML naming rules below) |
Description | Application parameter description (required field) |
Data type | Application parameter data type:
|
Direction | Application parameter directions:
|
Required | Is this parameter required?
|
Default | If checked, the parameter is displayed in the parameter list of the action based on the current application |
Application parameter names should respect the following XML naming rules:
They should begin with a letter or an underscore
They should contain only letters, digits, hyphens, underscores, and periods
They should not contain spaces
They should not begin with the letters
XMLin any case (e.g.xmlorXml)
For more information, see https://www.w3schools.com/xml/xml_elements.asp.
Deleting an application
An application cannot be deleted if it's used in a process.
Deleting a parameter
A parameter cannot be deleted if its application is used in a process.
Assembly application
This application allows you to declare a .NET class method as a workflow application. This is the fastest solution to develop a custom workflow application (compared to web services). The execution performance is exceptional because WorkflowGen instantiates the assembly directly without network communication or web service authentication.
📌 Example
Copy a sample
.dllassembly into a WorkflowGenbinfolder.Enter the following information in the appropriate fields:
Name:
SAMPLE_GET_STRINGDescription: Returns a string with a
!(exclamation point)Type: Assembly
Assembly full name or path:
WorkflowAppSampleClick Save.
Class full name: Select
WorkflowApp.TestMethod: Select
GetString
These parameters are automatically generated:
IN:
message(Text)OUT:
RETURN_VALUE(Text)
You can now use this workflow application in your process.
WCF service application
This application allows you to declare a WCF service client proxy .NET class method as a workflow application.
📌 Example
Enter the following information in the appropriate fields:
Name:
WCFSERVICE_SAMPLE_GET_STRINGDescription: Returns a string with a
!(exclamation point)Type: WCF service
Assembly full name or path:
WorkflowAppWCFSampleTestClick Save.
Class full name: Select
workflowAppWCFSampleTest.ServiceClientMethod: Select
GetString
These parameters are automatically generated:
IN:
message(Text)OUT:
RETURN_VALUE(Text)
You can now use this workflow application in your process.
Name:
WCFSERVICE_SAMPLE_GET_STRING
WSDL web services
Overview
WorkflowGen supports web services based on the SOAP standard. This means that web services can be integrated into WorkflowGen to be used by process actions, without the need to program them. WorkflowGen can use predefined web services and reference them by using their WSDL (Web Services Description Language) files.
A URL to the WSDL file defining the web service is required to display the available web methods that can be called by WorkflowGen. Once the WSDL is referenced and saved (in the WorkflowGen application definition), and one of its defined web methods are selected, the WorkflowGen application parameters are automatically generated.
The data types of the parameters are mapped to the corresponding WorkflowGen data types (numeric, text, datetime). All complex XML types are mapped to a WorkflowGen file data.
Public web services
Public web services are web services that are available for public re-use. To reference one as a WorkflowGen application, follow the example below.
Creating a WSDL web service
Name
Description
Type: Web service
Username: A valid WorkflowGen Administrator
Password: The valid password for the username
Reference a web service and WSDL by defining a URL to a valid web service and to its related WSDL file and save the application.
📌 URL example:
📌 WSDL example:
Select the web method to use. The WSDL defines which web methods are available to be used. Once you select a web method and save the application, the associated parameters are automatically mapped and the application may now be used by process actions.
Private web service example
Overview
Private web services are web services that are not available for public re-use. They generally use a secure URL that requires the proper authentication. To reference one as a WorkflowGen application, follow the example below.
Creating a WSDL web service
Name
Description
Type: Web service
Username: A valid WorkflowGen Administrator
Password: The valid password for the username
Reference a web service and WSDL by defining a URL to a valid web service and to its related WSDL file and save the application.
The examples below demonstrate the use of a web service located on a SharePoint 2007 website. In this example, the web service is called
lists.asmx. For more information, see http://msdn2.microsoft.com/en-us/library/ms445760.aspx.📌 URL example:
📌 WSDL example:
Select the web method to use. The WSDL defines which web methods are available to be used. Once you select a web method and save the application, the associated parameters are automatically mapped and the application can now be used by process actions.
WSDL web service action: other parameters
Overview
WorkflowGen will create some extra parameters when referencing a WSDL. Other parameters can also be used in addition to those already defined in the WSDL file.
Other parameters
The other parameters that are defined by WorkflowGen are:
RETURN_VALUE: If the web service returns a value, WorkflowGen will automatically add an OUT parameter.WFG_WS_URL: Specify a web service URL to override the predefined URL.WFG_WS_USERNAME: Specify a username to override the predefined username.WFG_WS_PASSWORD: Specify a password to override the predefined password.
